12 Flanged monopiles for Windpark Maasvlakte 2

12 FLANGED MONOPILES FOR WINDPARK MAASVLAKTE 2

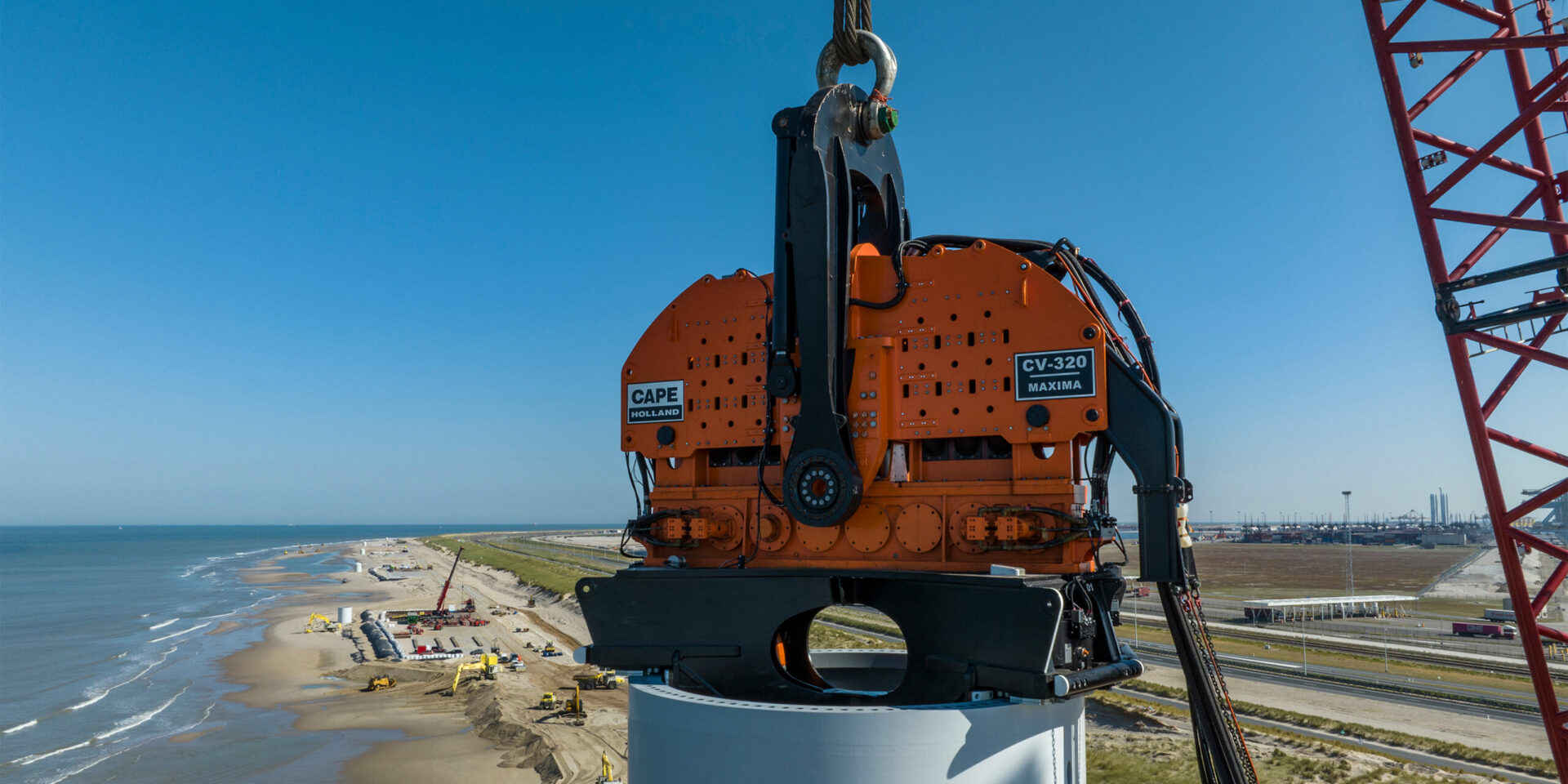

In May 2022, a CAPE VLT-320 was used to install 12 flanged monopiles with a diameter of 5 meter and a weight of approx. 300 tonnes each at the soft sea wall on the Maasvlakte 2, on the Dutch coast at the Port of Rotterdam. The monopiles support wind turbines as part of Windpark Maasvlakte 2.

The CAPE VLT was selected by installation contractor Ballast Nedam to upend and drive the monopiles, free hanging in the crane and without an installation frame or other support, to a stable depth and within the tight verticality tolerances required.

The installation equipment was placed on specially constructed crane stands. An impact hammer was used to drive the piles to final penetration.

Ballast Nedam introduced the monopile offshore foundation method to the onshore industry for the first time which proved a very efficient way with the installation of 12 monopiles within 3 weeks’ time with the last 5 piles being installed in just 5 days’ time. With the standard concrete foundations taking up to 2 months each to build the advantages are obvious.

Jan de Vries, Project Manager at Ballast Nedam: “The CAPE VLT is an essential tool in our innovative solution for installing onshore monopiles without needing a special frame to ensure the verticality.”

Application details

Application
Monopile installation
Pile type
Monopiles

PILE DETAILS

Pile type
Monopiles
Pile model
Flanged
Pile length
Up to 42,5m
Pile weight
250-350t
Pile wall thickness
60-75mm
Pile diameter
5m
No. of piles
12

PROJECT DETAILS

Period
May 2022
Sea
North Sea
Country
Netherlands
Location
Maasvlakte 2, Rotterdam
Market
Onshore Renewables
System/end usage
Wind Turbine
Operator
Eneco
Installation contractor
Ballast Nedam

Main Reasons for solution choice

NO NEED FOR GRIPPER OR INSTALLATION FRAME

UPENDING, LIFTING, DRIVING IN SINGLE OPERATION

CONTROLLED INSTALLATION

SELECTED EQUIPMENT

CAPE VLT-320

Equipment configuration
CAPE VLT-320 Single
Eccentric moment
320kgm
Max. line pull
500t
