4 pre-piled jacket piles for wellhead platform jacket

4 PRE-PILED JACKET PILES FOR WELLHEAD PLATFORM JACKET

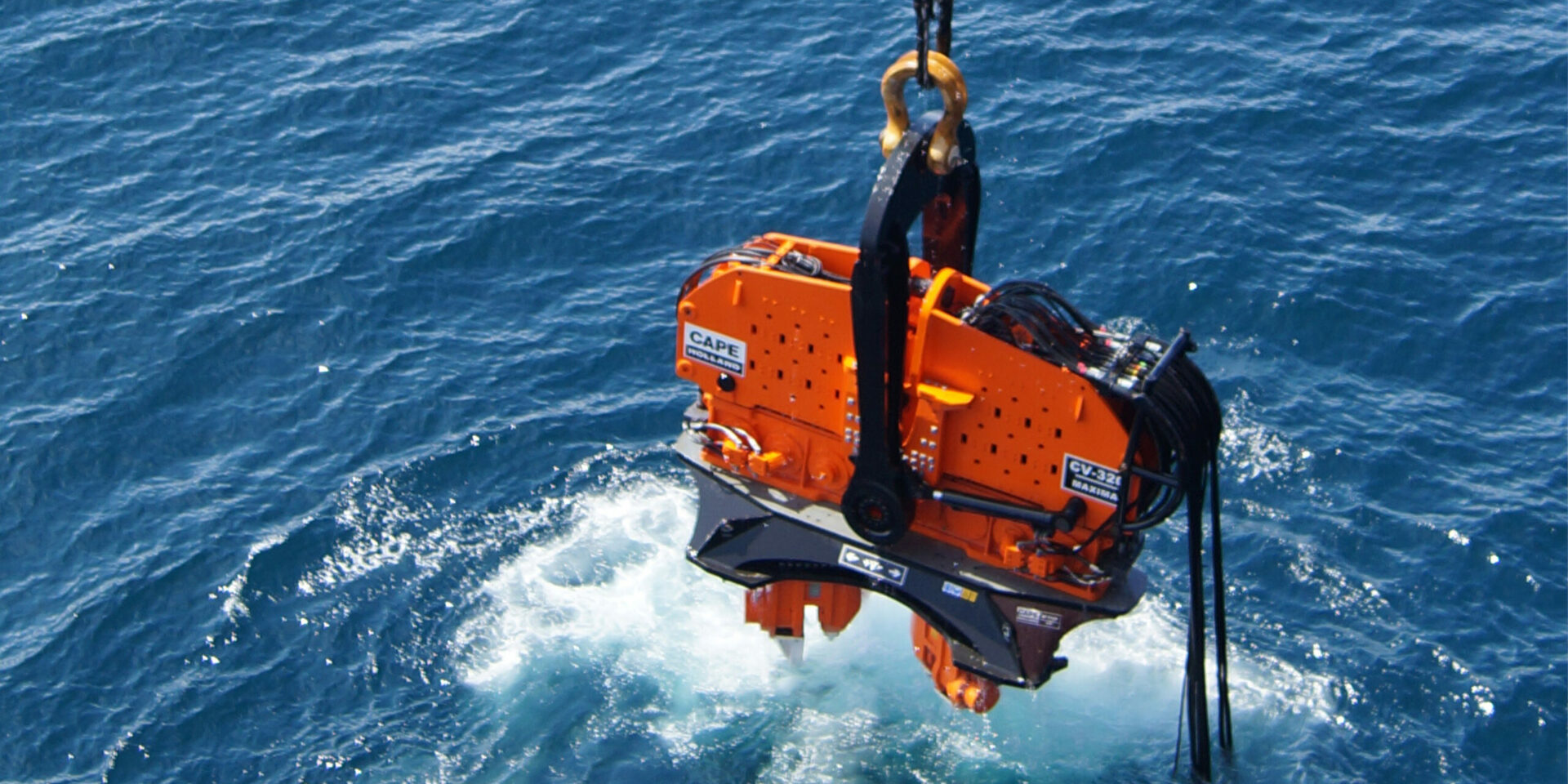

In 2015, the CAPE VLT-320 was used to upend and install four jacket piles with a length of 45 meter, weighting 235 tonnes and an 84 inch diameter at the Culzean project in 90 meter water depth in the Dutch North Sea. This pre-piling project was to form the foundation for the Culzean Wellhead Platform jacket which was placed on top of the piles in 2016.

Due to the hard top soil layers, very little self weight penetration was expected which meant that with the traditional impact hammer only installation method, the piles would not be stable within the template to be able to place the required 2,500kJ impact hammer on top of the piles and they would have had to impact driven first with a 500kJ impact hammer one by one after being placed in the template with an Internal Lifting Tool (ILT). This operation would have meant a total of 7 lifts to 90 meter depth for all piles.

In order to reduce the number of lifts to just four, the CAPE VLT was used as a stabbing tool to install the piles in one sequence to stable depth through a template without any tool change. Negating the need for a tool change meant it was possible to install all four piles in just one 12 hour shift to the predicted penetration depths, which resulted in a significant time savings.

Application details

Application
Jacket pile installation
Pile type
Jacket piles
Water depth
85m
Penetration
18m

PILE DETAILS

Pile type
Jacket piles
Pile length
45m
Pile weight
235t
Pile wall thickness
100mm
Pile diameter
2.1m
No. of piles
4

PROJECT DETAILS

Period
2015
Sea
North Sea
Country
United Kingdom
Location
UK waters
Market
Oil & gas
System/end usage
Wellhead platform jacket
Operator or end customer
Maersk Oil
Installation contractor
Heerema Marine Contractors
Type of vessel
Semi-submersible Crane Vessel
Name of vessel and owner
SSCV Hermod, Heerema Marine Contractors
Mode
Anchors

Main Reasons for solution choice

UPENDING, LIFTING, DRIVING IN SINGLE OPERATION

STABILITY

SUBSEA COMPATIBLE

SELECTED EQUIPMENT

CAPE VLT-320

Equipment configuration
CAPE VLT-320 Single
Eccentric moment
320kgm
Max. line pull
500t
